Introducing the Edge Dalton IoT Board: Industrial-Grade Intelligence at the Edge
As the demand for smarter, decentralised systems grows across manufacturing, utilities, and automation sectors, the need for reliable and…
As the demand for smarter, decentralised systems grows across manufacturing, utilities, and automation sectors, the need for reliable and intelligent edge hardware has never been more pressing. That’s why we built the Edge Dalton IoT Board — a compact, powerful, and flexible development platform purpose-built for industrial IoT applications and seamless integration with Consentium IoT.
Why Edge Dalton?
Designed around the efficient ESP32-C3-MINI, the Edge Dalton is more than just another dev board. It’s a reliable foundation for deploying real-time sensor applications, TinyML models, and wireless automation at the edge. Whether you’re capturing multi-channel voltage/current readings, logging data to the cloud, or running inference tasks, Edge Dalton is equipped to handle it — robustly and efficiently.
💡 Key Features at a Glance
⚙️ Core Processing
- ESP32-C3-MINI SoC: RISC-V 32-bit single-core processor
- Built-in Wi-Fi & Bluetooth LE: Perfect for connected environments
- FreeRTOS support: Enables deterministic real-time behaviour
🔌 Versatile Power Options
- USB-C Interface: Simplifies power and programming
- DC Barrel Jack: For dedicated external supply
- AMS1117 Onboard Regulator: Ensures clean, stable operation
🧩 Flexible I/O & Expansion
- I2C, UART, I2S Interfaces: Connect a wide variety of sensors
- Dedicated GPIO headers: Expand as your project demands
- 3.3V logic level: Compatible with standard peripherals
📈 Sensor Monitoring Capability

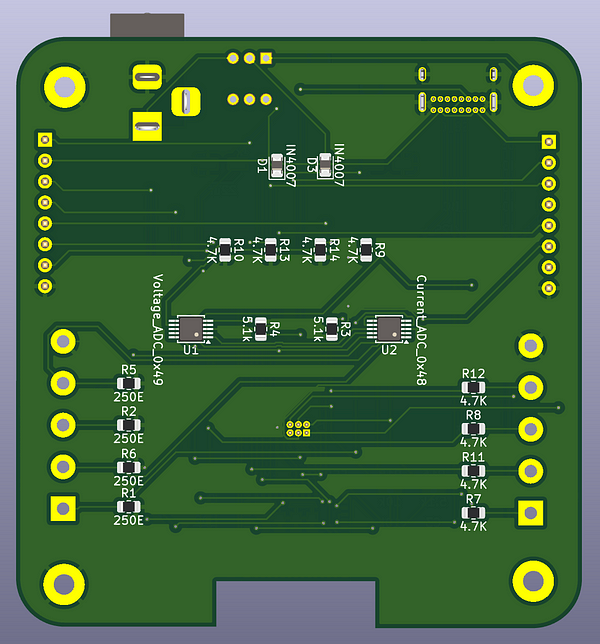

- Voltage Terminal (J3): Monitor up to 4 separate channels
- Current Terminal (J5): Precision current sensing across 4 channels
- Dedicated ADCs: Capture high-fidelity measurements
🛠 Getting Started
Getting up and running with Edge Dalton is simple:
- Power On via USB-C or a DC barrel supply.
- Flash Firmware using the Arduino IDE or ESP-IDF.
- Connect Sensors to J3 (voltage) and J5 (current) terminals.
- Stream Data to the Consentium IoT Cloud and visualize insights.
Need help? Our full documentation is available at docs.consentiumiot.com and we’re just an email away at [email protected].
🧠 Built for the Future of Edge Intelligence
As industrial operations increasingly shift toward smart, autonomous systems, the need for rugged and intelligent edge computing solutions becomes essential. The Edge Dalton IoT Board brings the capabilities of Consentium IoT right to the field — giving developers, engineers, and makers the tools to create scalable, data-driven applications at the edge.
Ready to build smarter edge solutions? Start with Edge Dalton today.
